產品名稱：

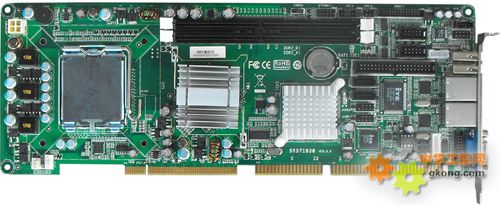

艾訊宏達945GC工業長卡SYS71838VGA

型　　號：

SYS71838VGA

價　　格：

品　　牌：

產品介紹：

>> System

Processor LGA775, Core 2 Duo/Pentium Dual-Core/Pentium EE/Pentium D/Pentium 4/ Celeron D

Chipset Intel 945GC + ICH7 + FWH with 533/800/1066MHz

DRAM 2 x 240PIN Dual Channel DDRII 533/667/800 max up to 4GB

BIOS 4MB AMI BIOS

BUS PICMG 1.0

Power Supply Support ACPI V2.0 specification

Watchdog 1~255 sec Watchdog timer selectable w/Reaset/NMI

Dimension 338mm x 122mm

>>Rear Panel I/O Ports

VGA 1 x DB-15 VGA port

LAN 1 x RJ-45 LAN ports

USB 2 x USB 2.0/1.1 ports

>> I/O Connectors

SATA 2 x SerialII ATA connector

IDE 1 x 40-pin IDE connector

LPT 1 x Parallel connector

USB 2 x connectors for 4 additional external USB 2.0/1.1 ports

Keyboard & Mouse 1 x mini-DIN-6 PS/2 keyboard & Mouse port

COM 2 x COM ports, COM1 for RS232, COM2 for RS232/422/485

Audio 1 x front audio connector for line-out and Mic-in jacks

CD-in 1 x CD-in internal audio connector

Power 1 x 4-pin ATX +12V power connector

Fan 2 x Fan connector

>> Display

Graphics Intel Graphic Media Accelerator 950, Max share 224MB memory

>> Environment

Operation Temperature 0°~60°C (32°~140°F)

Humidity 10~90%

關 鍵詞：

945GC 工控長卡
