主要特點(diǎn)
- Low Power COM Express CPU Module
- Onboard Intel® Pineview-D Dual Core D510 1.66GHz Processor
- Intel® ICH8M Chipset
- Support DDR2 667 and 800 SO-DIMM up to 2GB
- Intel® PCI Express GbE 82574L
- Support 3 x SATA, 1 x IDE, 8 x USB2.0 for fast peripherals
- Micro COM Exrpress Type II supports up to 5 Express lanes, 32 bit PCI interface and one IDE and Gigabit LAN

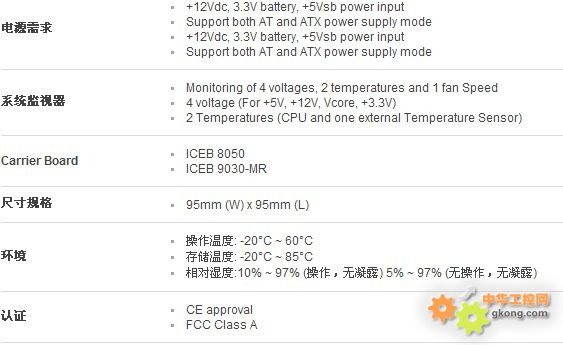

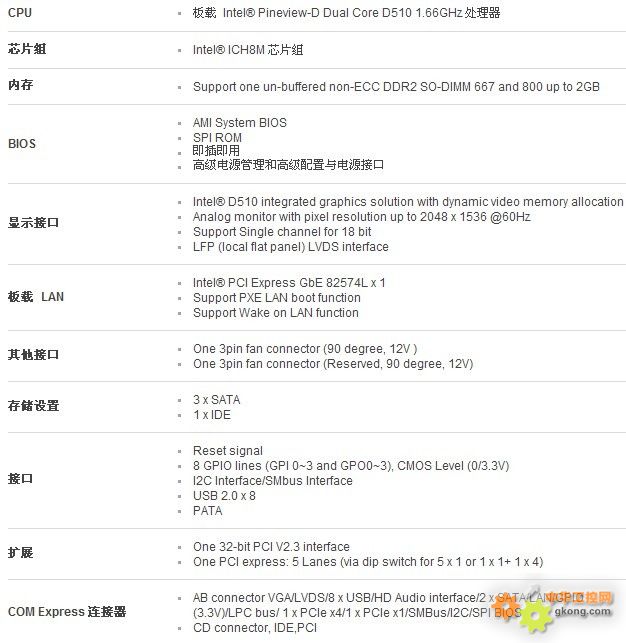

產(chǎn)品規(guī)格
|
