Features ＊Supports a 32-bit 3.3V or 5V PCI bus
�。狥ully compatible with IEEE 488 standard
�。猆p to 1.5MB/s data transfer rates
�。狾n-board 1KB FIFO for read/write operations
�。狿rovides APIs compatible with NI-488.2*
�。猄upports industrial-standard VISA library
�。狪nteractive utility for testing and diagnostics
Introduction
ADLINK PCI-3488 GPIB controller interface card, fully compatible with the IEEE
488 instrumentation control and communication standard, is capable of controlling
up to 14 stand-alone instruments via IEEE 488 cables. It is designed to meet the
requirements for high performance and maximum programming portability. The
1KB on-board FIFO and a block transfer mode provide up to 1.5 MB/s GPIB transfer
rate. With the APIs that are compatible with NI-488.2* and VISA support, the PCI-3488 provides the greatest compatibility with your existing applications and
instrument drivers. (* NI-488.2 mentioned herein is the trademarks and properties
of National Instruments Corporation.)

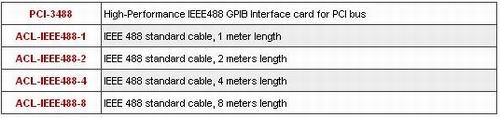

Ordering Information
